Comprehensive Technical Characteristics of Inverter
Input-output Characteristics:
Input Voltage Range: 380/220V±15%
Input Frequency Range: 47-63Hz
Output Voltage Range: 0-rated input voltage
Output Frequency Range: 0-400Hz
Peripheral Interface Characteristics
Programmable Digital Input: 6 channel input
Programmable Analog Input: 0-10V input, FI: 0-20mA or 4-20mA input
Open Collector Output: 1 channel output input
Relay Output: 1 channel output
Analog Output: 1 channel output, optional 0-20mA or 0-10V
Technical Performance Characteristics
Control Mode: SVC, V/F direct torque control
Overload Capacity: 150% rated current 60s; 180% rated current 10s
Starting Torque: SVC: 0.5Hz/150% (SVC)
Speed Regulation Ratio: SVC: 1:100
Speed Control Accuracy: SVC; ±0.5% maximum speed
Carrier Frequency: 0.5k-15.0kHz
Name rules:
Specification:
1.Applies to the driving control of permanent-magnet synchronous motor and asynchronous motor, possessing different kinds of rotary encoder interfaces;
2.Self-tuning function of motor parameters, including static tuning and full tuning;
3.Quick startup of curve processing, multi-stage S curve settings and 4-stage acceleration and deceleration time settings ensure the sense of comfort during the running of the elevator;
4.Simple and practical battery running function, the input of 48V power supply can complete self-help when power is off;
5.Enable inspection、brake contactor control, output contactor control, forced deceleration judgment, over speed testing, speed deviation testing, advanced door open, contact conglutination testing, motor overheat testing, startup pre-torque compensation and other elevator special functions make elevator control easier;
6.The unique one-button design on the operation panel make complicated keyboard operation easy;
7.Built-in DC reactor and braking unit improve output power factor of the system and reduce the cost of outside components of the electrical system；

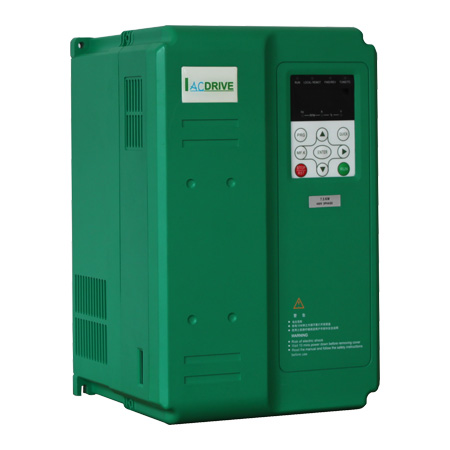

8.The whole series of independent duct design, professional lightning protection design, professional manufacture platform and advanced processs control ensure the quality of I3300 specialized Elevator inverter;
Main parameters of the I3300 Elevator inverter (IP model included)
