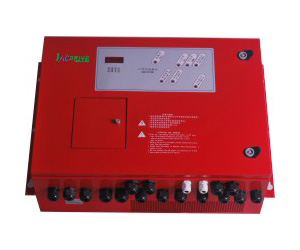

inverter_solution/”>inverter solutions” />[/imageframe]S3300-CE is designed for the construction of load characteristics and control requirements of a specially developed integrated control of a dedicated inverter.
Learn more about frequency inverter.
Integrated construction elevator inverter electrical logic, frequency control, brake power, overload protection, increase text display, voice broadcast, floor call, automatic leveling, GPRS function. To meet the energy-saving, low-speed and medium-speed construction lifts in the high-end application requirements.
Specification:
Integrated
Integrated electrical logic control, variable frequency control, brake unit, overload protection, brake power, elevator control cabinet to achieve protection and protection functions;
Safe and reliable
Lifting special holding brake control;
Pre-excitation and torque verification function, to prevent slip car;
Zero detection, to prevent misuse of the joystick;
Dozens of fault protection, deal with all kinds of unexpected situations;
Dedicated
Customized protection design, independent terminal configuration, flexible installation, easy maintenance;
When the load is light, enhance the running speed;
Dedicated phase protection, low-voltage logic control to ensure safe operation of equipment;
Rich to expand
Secondary platform development;
With automatic leveling and GPRS functions;
Specification:
| Item | Specifications | |
| Maximum frequency | 150 Hz | |
| Carrier frequency | 0.5–16 kHz, adjusted automatically based on the load features | |
| Resolution of input frequency | • Digital setting: 0.01 Hz | |
| • Analog setting: maximum frequency x 0.025% | ||
| Motor control mode | Sensorless vector control (SVC) Voltage/Frequency (V/F) control | |
| Startup torque | • V/F: 0.5 Hz, 150%; SVC:0.5 Hz, 200% | |
| Speed range | 1:100 (SVC) | |
| Speed stability accuracy | ±0.5% (SVC) | |
| Overload capacity | 60s for 150% of the rated current, 3s for 180% of the rated current | |
| Torque boost | • Fixed boost | |
| • Customized boost 0.1%–30.0% | ||
| Ramp mode | • Straight-line ramp | |
| Basic functions | • S-curve ramp | |
| DC braking | DC braking frequency: minimum frequency to rated frequency | |
| DC braking current: 0.0% to 120.0% of rated current | ||
| Auto voltage regulation (AVR) | It can keep constant output voltage automatically when the mains voltage changes | |
| Overvoltage/Overcurrent stall control | The current and voltage are limited automatically during the running to avoid frequent overvoltage/over current tripping | |
| Rapid current limit | It decreases the over current faults to the minimum and ensures normal running of the AC drive | |
| Torque limit and control | It automatically limits torque during running, preventing frequent over current tripping | |
| Excellent performance | It implements control on the asynchronous motor and synchronous motor with the high-performance current vector control technology | |
| Power dip ride-through | It reduces set frequency for load to maintain normal output of the AC drive when the bus voltage remains low, preventing the undervoltage fault during running | |
| Low voltage protection | In the case of sudden bus voltage reduction or power failure, the AC drive stops quickly and restricts the running to prevent hook gliding | |
| Overload protection | It automatically identifies the load condition, and restricts the hoist running after | |
| overload, but allows only the descending running | ||
| Three-level function codes | The function codes are classified into three levels, respectively for junior, senior, | |
| and advanced users | ||
| Display of gearbox use ratio | With the internal calculation mode of the gearbox use ratio, the current gearbox use ratio is displayed to users | |
| Brake time sequence control | The time sequence control of a specialized brake for the crane is provided | |
| Light-load high-speed | It detects the output torque of the AC drive and automatically calculates the highest output frequency | |
| Load overspeed judgment | Two alarms indicating frequency direction abnormality and frequency following abnormality based on the encoder feedback frequency are available | |
| Individualized functions | Integrated control | Built-in logic for construction hoist simplifies design of control cabinet. |
| Multiple fault alarms | Probable faults are listed and corresponding solutions are provided | |
| Advanced background software | It supports the AC drive parameter operation and virtual oscilloscope function. By means of the virtual oscilloscope, the state inside the AC drive is monitored | |
| Static auto-tuning of motor parameters | The S3300 supports static auto-tuning of all motor parameters | |
| Weighing function | The S3300 can calculate current load weight according to analog input signal of weighing sensor and supports operation limited due to overload | |
| Command source | • Operation panel control | |
| • Terminal control | ||
| Frequency source | Multi-speed | |
| • 5 digital input (DI) terminals, including one that supports up to 100 kHz high- speed pulse input | ||
| Running | Input terminal | • 2 analog input (AI) terminals, one supporting only 0–10 V voltage input and the other supporting 0–10 V voltage input or 4–20 mA current input |
| • 1 high-speed pulse output terminal (open-collector) that supports 0–100 kHz square wave signal output | ||
| • 1 digital output (DO) terminal | ||
| Output terminal | • 1 relay output terminal | |
| • 1 analog output (AO) terminal that supports 0-10 V voltage output or 4–20 mA current output | ||
| Display and operation | LED display | It can display the parameters |
| Installation location | Indoor, free from direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapor, drip or salt | |
| Altitude | Lower than 1000 m (derated 1%/100 m if the altitude is higher than 1000 m) | |
| Ambient temperature | –10°C to +40°C (derated 2%/degree when between 40°C and 50°C) | |
| Humidity | Less than 95% RH, without condensing | |
| Vibration | 9.8 m/s2 for below 20 Hz, and 5\.9 m/s2 for above 20 Hz | |
| Environment | Storage temperature | –20°C to +70°C |
| Pollution level | PD2 | |
| IP level | IP20 | |
| Power system | IN, TT | |
